Consider the Truss Shown Below. Identify the Zero-force Members.

A Determine the external reactions on the truss at A and G. Consider the trusses that are loaded as shown below and are in static equilibrium.

Solved Consider The Truss Shown Below Identify The Chegg Com

There are two rules that may be used to find zero-force members in a truss.

. Part A Identify the zero-force members in the truss. Also if three members form a truss joint for which two of the members are collinear the third member is a zero-force member provided no external force or support. The zero-force elements of a truss may usually.

This engineering statics tutorial goes over an example of how to find the zero force members in a truss with a certain loading. In the case above joint 1 and 6. Answer 1 of 4.

Case 1 At a TWO member joint. Identify all zero-force members. A Identify all zero-force members.

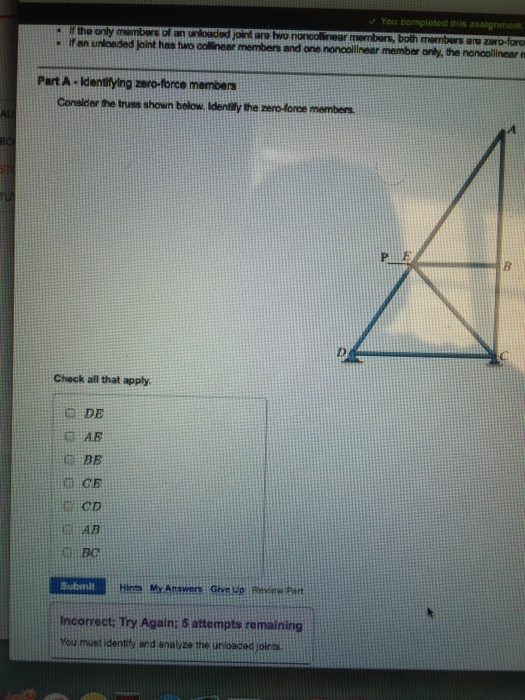

If those members are NOT parallel AND there are no other external loads or reactions at the joint THEN both of those members are zero force members. Repeat Step 2 until all ZFMs are found. Vlew Available Hints O AB O BC O BD O DE O AE O CD BE Figure 1 of 1 Submit Previous Answers 3 kN X Incorrect.

Find Zero Force Member in truss below If three members form a truss joint for which two of the members are collinear and there is no external load or reaction at that joint then the third non-collinear member is a zero force member eg DA. Draw a FBD of the entire truss showing the reaction forces at the supports and the external loads. 12 No applied force or support reaction present at that joint.

Homework 4 Zero-Force Members 3 of 6 Learning Goal. Check truss for Cases 1 2 and 3 and identify each zero-force member ZFM. 13 Both members are zero-force members.

These zero force members may be required to ensure the trusss stability during construction and to offer support in the event that the applied loading is altered. B State anything else you can determine about the truss by inspection. Check all that apply.

Truss Zero Member. Solution for Consider the loaded truss shown below. I missed two ZFMs in this vid.

Draw a FBD of each joint in the truss. Truss analysis employing the joint approach is considerably simplified if one first determines which members do not sustain any load. You can submit one answer at a time by leaving the remaining answer fields blank.

Summary of Zero Force Member for Truss Then if only two non-collinear members form a truss joint and no external load or support reaction is applied to the joint the members must be zero-force members Case 1. 5 attempts remaining -2 m 2m You have. To find the unknown internal member forces the free - body diagram of a section is drawn and the equations of equilibrium are applied.

Write the equilibrium equations and solve for as many unknowns as possible. Considering ZFMs found in Step 1 as not being present check for Cases 1 2 and 3 and identify each ZFM. Fundamental Problem 65 - Enhanced - with Hints and Feedback Consider the truss shown in Figure 1.

Consider another example here. 0 F x 0 F y 0 M O Because there are only three independent equilibrium equations section cuts should be made such that there are not more than three members that have unknown forces. Identify the zero-force members.

These are described below and illustrated in Figure 33. Part A - Zero force members in a simple truss Consider the truss shown in Figure 1. Zero-Force Members- Exercise 1.

Consider the truss loaded as shown. Identify the zero-force members in the truss shown below. Identify the zero-force members in the truss.

Be sure to abide by. Identify any zero-force members and any members that carry the same load as other members or external loads. To be able to identify zero-force members in truss systems.

Let me explain with help of diagram- Case 1 11 Two non-collinear members are connected at a joint. 276 Example 7E5 Given. General Procedure for Identifying Zero-Force Members in.
